INDUCTION SEALING MACHINES

INDUCTION SEALING MACHINES


Cap bottles and containers securely and rapidly. These compact yet powerful units are designed to securely seal plastic caps onto bottles. At VG Pack we offer both manual and semi automatic models.The Pneumatic Manual Capper provides a smoother and comfortable torque control. The capping process is extremely simple: The manual capper can be hanged from roof or be held by hand. The operator places caps on bottles manually; after pressing the capper down on the cap the unit is activated while holding down the bottle or container. The unit will stall or disengage its clutch when the target torque is reached.

The Semi Automatic Capping Machine is used by the beverage, food,cosmetic, agricultural, pharmaceutical and chemical industries, among others.

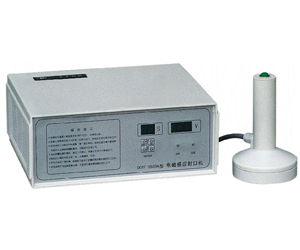

Manual Induction Sealing Machine


1. For use on Plastic and/or Glass containers with Flat Threaded Caps

2. Hand-held Operation

3. Extremely Simple to Use

4. Easily Relocated to where its needed Packaging Area

5. Optimal use for small to medium productions or as backup to larger continuous systems

6. Speed: Aprox 20 - 40 cpm (Depending on Operator Speed and Container Characteristics)

7. Maximum Cap Diameter (60 - 130 mm)

8. Maximum distance between the cap surface and the top of container (3 mm)

9. Horn Power: 600 Watts

10. Cycle Actuation: Thumb Switch

11. Control Panel:

12. Master ON/OFF Switch

13. Fuse Protection

14. Current Electrical Charge Digital Display

15. Sealing Time Digital Display (Seconds & Tens of Sec)

16. Automatic Overheat Protection Fuse and Alarm./Light with Automatic Cool down Reset Feature

16. Automatic Over Current Alarm/Light Engages if Excessive Distance Between Horn and Substrate is Being Applied


Control Panel


1. Master ON/OFF Switch Sealing Time Digital Display (Seconds & Tens of Sec)

2. Fuse Protection Current Electrical Charge Digital Display

3. Automatic Overheat Protection Fuse and Alarm./Light with Automatic Cool down Reset Feature

4. Automatic Over Current Alarm/Light â Engages if Excessive Distance Between Horn and Substrate is Being Applied


Other Specifications


Electrical: 220V/50-60Hz

Machine Weight: (5 Kg)

Control Unit Size: (340 x 290 x 150 mm H)

Packaged Dimensions: 21 inches (533mm0 x 19 inches (483mm) x 10 inches (254mm)

Packaged Weight: 15 Lbs (7 kg)
